Plating Services
DOWA's Plating Method
Among various plating methods, DOWA applies the reel-to-reel plating method.
Compared to other plating methods such as rack plating and barrel plating, in which individual parts are plated after stamping, the reel-to-reel plating method allows for high productivity and excellent quality stability.
[Reel-to-Reel Plating Method]
Plating Lineup in Mexico
[Plating Lineup and Available Material Sizes]
| Plating Type | Material Thickness (mm) | Material Width (mm) | Plating Thickness | |
|---|---|---|---|---|
| Ag (Silver) | Overall, Selective | 0.1 - 1.2 | 10 - 120 | 0.2 - 5.0μm |
| Sn (Tin) Bright/Matte/Reflow | Overall, Selective | 0.1 - 1.2 | 10 - 120 | 0.3 - 5.0μm |
| Ni (Nickel) | Overall, Selective | 0.1 - 1.2 | 10 - 120 | 0.1 - 2.0μm |
| Cu (Copper) Undercoat | Overall, Selective | 0.1 - 1.2 | 10 - 120 | 0.1 - 0.6μm |
[Available Material Types]
Type : Copper-based materials (Copper, Brass, Phosphor bronze, etc.)
Size : 0.1 – 1.0mm (thickness) and 10 – 120mm (width)
Shape : The reel-to-reel pre-plating (on bare strip), The reel-to-reel post-plating (on stamped strip)
- DOWA can plate on copper and copper alloy strip, as well as stamped materials.
Plating can be applied on not only our own materials but also a variety of other materials. Please contact us for more details.

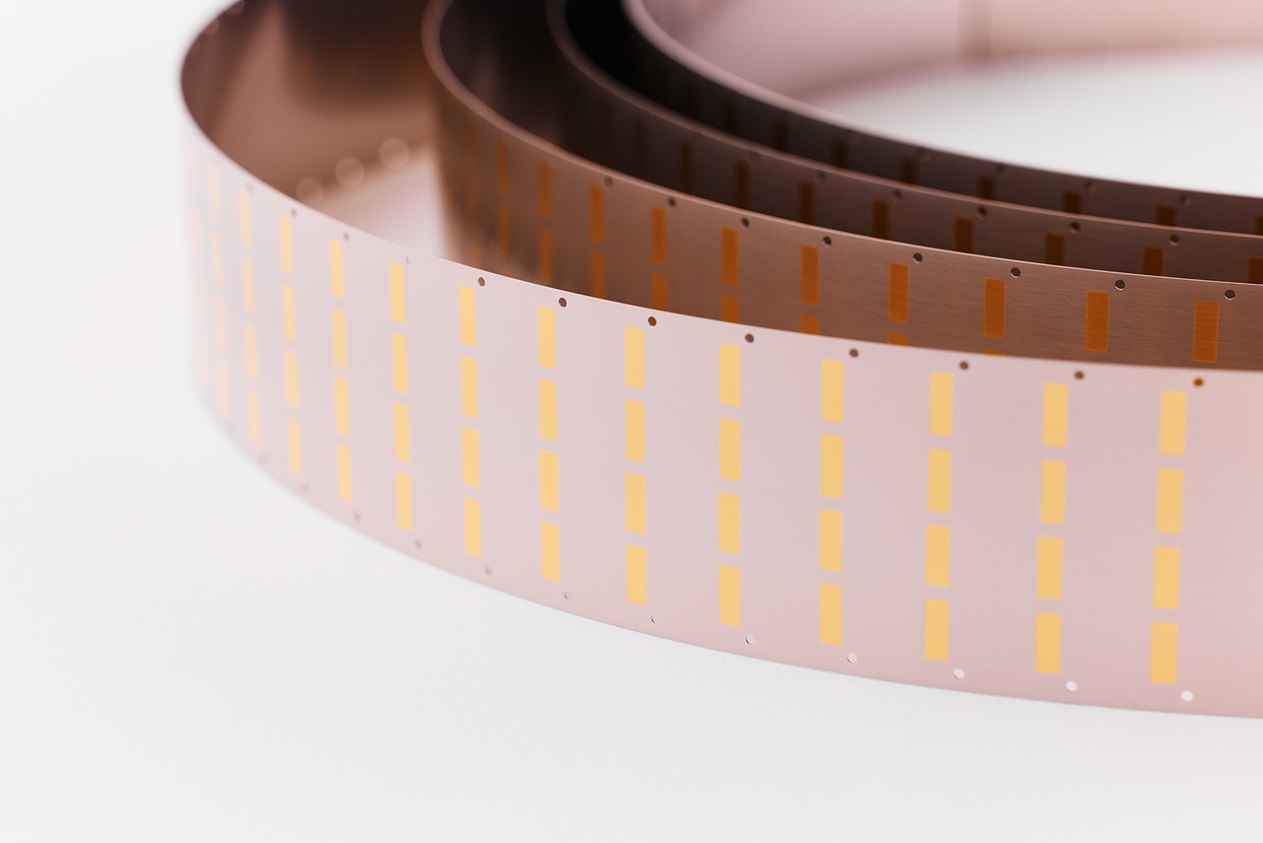

Plating Layout Examples
Plating in Mexico could save Time and Cost
If you are currently plating in the U.S. or other countries, we may be able to reduce transportation costs and lead time by performing the plating process at our company, thereby enabling integrated processing of stamping, plating, and molding in Mexico.
If plating in the U.S.
Material
Stamping
Plating
Stamping & Molding
What can be achieved with plating at DOWA
Material
Stamping
Plating
Stamping & Molding
we create a high-level materials supply chain in Mexico
and offer a new and valuable option for the North American automotive market.
Global Technical Standards
DOWA’s electroplating business is conducted at four bases: the mother plant in Japan, two bases in Thailand, and one in Mexico.
All of our bases set processing conditions in accordance with DOWA’s global technical standards. Therefore, we are able to guarantee the same quality worldwide.
In addition, through the introduction of state-of-the-art facilities (plating lines, drainage facilities, buildings, etc.), we strive to provide a stable supply of superior products, as well as environmentally friendly manufacturing processes and a safe work environment.
Plating Technology
The center promotes research on new plating technology that meet the needs of the marketplace in a timely manner.
